Plumbing Vent For Island Sink : An island sink, which is set up in a cabinet in the middle of your kitchen, is both a very practical and highly original design solution for your kitchen.however, island sinks have one big problem:
Plumbing Vent For Island Sink : An island sink, which is set up in a cabinet in the middle of your kitchen, is both a very practical and highly original design solution for your kitchen.however, island sinks have one big problem:. Get it as soon as thu, jul 1. Everything needs to be contained within the island itself. Professional fast service call now! There's even a wet vent included that connects to the bathtub. Plumbing vents (a network of pipes that carry air and gas outdoors through a pipe exiting your roof) are essential to supply enough air to keep equal pressure in the plumbing system.
Amazon's choice for under sink vent. Everything needs to be contained within the island itself. Ideal for island sinks, remote bathrooms, and remodeling jobs by eliminating the need to tie into a vent stack. We handle all plumbing scenarios & needs! To help you better visualize what these piping systems look like, we thought it might help to incorporate a plumbing vent diagram.
Stink under sink/ AAV Valve | Terry Love Plumbing ... from www.terrylove.com This island loop, which first appeared in the uniform plumbing code in 1958, was later recognized in most other model plumbing codes, and has remained largely unmodified throughout the years. Putting a sink in an island in the middle of the kitchen presents some plumbing challenges. To help you better visualize what these piping systems look like, we thought it might help to incorporate a plumbing vent diagram. There's even a wet vent included that connects to the bathtub. A plumbing vent must be located within an acceptable distance of the island sink. Plumbing a kitchen island presents problems for venting, because the sink isn't near a wall behind which you can hide the vent pipe. The island sink drain, upstream of the returned vent, shall serve no other fixtures. Because a kitchen island doesn't have a wall to run a vent pipe, the vent.
• traps for island sinks and similar equipment shall be roughed in above the floor and shall be permitted to be vented by extending the vent as high as possible, but not less than the drain board height and then returning it downward and connecting it to the horizontal sink drain immediately downstream from the vertical sink fixture drain.

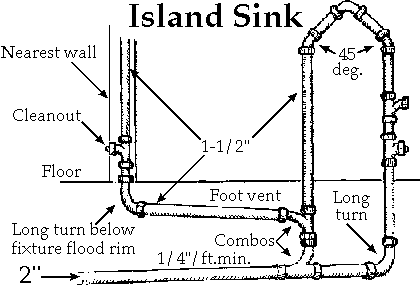

I do tend to steer away from house brand aav's, though. Plumbing vents (a network of pipes that carry air and gas outdoors through a pipe exiting your roof) are essential to supply enough air to keep equal pressure in the plumbing system. The plumbing vent for an island sink or fixture is returned back dow and connected to the horizontal portion of the sink drain piping immediately downstream from the vertical portion of the drain as is illustrated in the schematic above on this page. Vent stacks in a household plumbing system work the same way. This island loop, which first appeared in the uniform plumbing code in 1958, was later recognized in most other model plumbing codes, and has remained largely unmodified throughout the years. Get it as soon as tue, jun 29. I need your expert advice. An oatey is always my first choice, but i will use a studor if that is all that is available. The first drawing shows a simple method, but one that is not accepted by all municipalities or plumbing inspectors. Install the vent between the sink p trap and the point where the waste line leading from the trap drops to the main sewer. Without air, your plumbing system will drain slowly or not at all. A secondary stack, perhaps 2 or 3 inches in diameter, serves a branch of the system. Outfitting them with efficient venting pipes is a no east feat.
The island sink drain, upstream of the returned vent, shall serve no other fixtures. Install the vent between the sink p trap and the point where the waste line leading from the trap drops to the main sewer. The two island sink photographs just above show a recent (2014) island sink installation in. To have a large sink that drains properly you need to keep in mind some basic plumbing principles. Vents up to 160 dfus on a branch and up to 24 dfus on stack.
Sink vent in an island from www.askmehelpdesk.com 4.5 out of 5 stars 75. I do tend to steer away from house brand aav's, though. I need your expert advice. If you don't have a vent on your sink drain you can use one of these air admittance in line vents from oatey here: • traps for island sinks and similar equipment shall be roughed in above the floor and shall be permitted to be vented by extending the vent as high as possible, but not less than the drain board height and then returning it downward and connecting it to the horizontal sink drain immediately downstream from the vertical sink fixture drain. Patented sweet spot™ technology seals at minimum and maximum pressure levels. An accessible cleanout shall be installed in the vertical portion of the foot vent. Plumbing vents are usually installed inside a wall, but because an island sink.
4.5 out of 5 stars 75.
Because a kitchen island doesn't have a wall to run a vent pipe, the vent. A regular kitchen sink vent must rise at least 6 inches above the fixture before going horizontal. We handle all plumbing scenarios & needs! Plumbing vents are usually installed inside a wall, but because an island sink. Patented sweet spot™ technology seals at minimum and maximum pressure levels. The intent of this bulletin is to clarify the use of special venting for island fixtures, commonly known as loop venting, to be used at other sink locations when structural framing conditions prohibit the standard plumbing vent system from being used. Outfitting them with efficient venting pipes is a no east feat. Everything needs to be contained within the island itself. This critical distance can present a problem for island sinks. We want the drain water to flow freely. It can't be vented the same way as a regular kitchen sink. I need your expert advice. However the sink is placed further away.
This island loop, which first appeared in the uniform plumbing code in 1958, was later recognized in most other model plumbing codes, and has remained largely unmodified throughout the years. Putting a sink in an island in the middle of the kitchen presents some plumbing challenges. Without air, your plumbing system will drain slowly or not at all. In plumbing, venting pipes are a set of air ducts which have some very important functions. The image below illustrates s typical bathroom with multiple plumbing vents.
How do you put the vent pipe in an island sink? from s3.amazonaws.com Install the vent between the sink p trap and the point where the waste line leading from the trap drops to the main sewer. This critical distance can present a problem for island sinks. The island fixture vent the air admittance valve and the combination waste and vent system. I do tend to steer away from house brand aav's, though. An accessible cleanout shall be installed in the vertical portion of the foot vent. A regular kitchen sink vent must rise at least 6 inches above the fixture before going horizontal. If you don't have a vent on your sink drain you can use one of these air admittance in line vents from oatey here: Plumbing vents (a network of pipes that carry air and gas outdoors through a pipe exiting your roof) are essential to supply enough air to keep equal pressure in the plumbing system.
Good question tom, because you don't have a wall which will simply allow you to go from the drain pipe uphill to the vent stack as we usually do.
An oatey is always my first choice, but i will use a studor if that is all that is available. • traps for island sinks and similar equipment shall be roughed in above the floor and shall be permitted to be vented by extending the vent as high as possible, but not less than the drain board height and then returning it downward and connecting it to the horizontal sink drain immediately downstream from the vertical sink fixture drain. The maximum allowable distance will vary depending on your local code, but generally falls in a range of 8 to 10 feet. If you don't have a vent on your sink drain you can use one of these air admittance in line vents from oatey here: To have a large sink that drains properly you need to keep in mind some basic plumbing principles. Such vent shall not be an island fixture vent as allowed by section 913. A regular kitchen sink vent must rise at least 6 inches above the fixture before going horizontal. The centerpiece of a dwv system is the main stack, usually a pipe 3 or 4 inches in diameter that runs straight up through the roof. Professional fast service call now! Plumbing vents are usually installed inside a wall, but because an island sink. The image below illustrates s typical bathroom with multiple plumbing vents. A secondary stack, perhaps 2 or 3 inches in diameter, serves a branch of the system. However the sink is placed further away.
Patented sweet spot™ technology seals at minimum and maximum pressure levels island sink plumbing. In plumbing, venting pipes are a set of air ducts which have some very important functions.
